Thread: KitchenAid KUDM01TJ upper spray arm fell off

  1. May 16th, 2010, 09:05 AM #1
    squiddog
    squiddog is offline Member
    Join Date
    May 2010
    Location
    Michigan
    Posts
    1

    Default KitchenAid KUDM01TJ upper spray arm fell off

    Model Number: KUDM01TJ
    Brand: KitchenAid

    Hi,

    One day I found the items in the attached photo laying in the bottom of my dishwasher - they are supposed to be attached to the top of the dishwasher above the glass rack. I had hoped that if I pushed them back in they would snap in somehow, but they just fall back out.

    Can anyone help me reattach this? Did I lose a screw or something? The KitchenAid manual is no help, there is no parts list in there.

    Thanks!
    Attached Thumbnails Attached Thumbnails KitchenAid KUDM01TJ upper spray arm fell off-img_1324.jpg
    Reply With Quote Reply With Quote
  2. May 16th, 2010, 02:26 PM #2
    Jake's Avatar
    Jake
    Jake is offline Appliance Tech - Admin
    Join Date
    Aug 2004
    Location
    Springfield, Oregon
    Posts
    63,679

    Default

    Looks like your missing a smaller part that secures it to the top inner feed tube.

    To install it there should be a screw that holds the inner feed tube up towards the top, just remove that screw, then it should snap together in that inner feed tube.

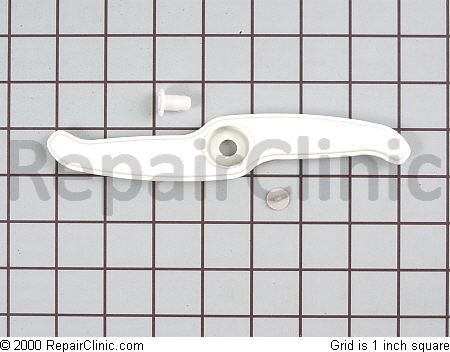

    Here's the upper spray arm kit for your model you can order:
    Manufacturer part number 8193504 is RepairClinic item number 903947


    Jake
    Appliance Repair School 1987-1988
    Star Appliance Tech. 2 yrs. 1988-1990
    Wards Appliance Tech. 11 yrs. 1990-2001
    Sears Appliance Tech. 4 yrs. 2001-Oct. 2005
    Jake's Appliance Repair Nov. 2005-present

    Look-Up & Order Parts
    Reply With Quote Reply With Quote
