795.71053.010 Kenmore Refrigerator - My ice bin fell apart. How to re-assemble?

[DingoBongo]

Model Number

795.71053.010

Brand

Sears Kenmore

Age

1-5 years

I took my ice bin out to dump some ice into a bowl and the whole crusher / dispenser assembly fell apart. I guess one of the screws was loose. I have all the parts I just don't know in what order to put all the parts back in and the manual doesn't show how this assembly goes together. Can anyone guide me through it?

Added complete model number



[jeff1]

Hi,

795.7105

This is part of a full model# and shows that 25 models start with those digits.

Once we have the full model#, I hope someone can help
http://www.applianceaid.com/model-number.php Some model# helps.

jeff.



[DingoBongo]

Thank you. Full model number is 795.71053.010



[jeff1]

That one works

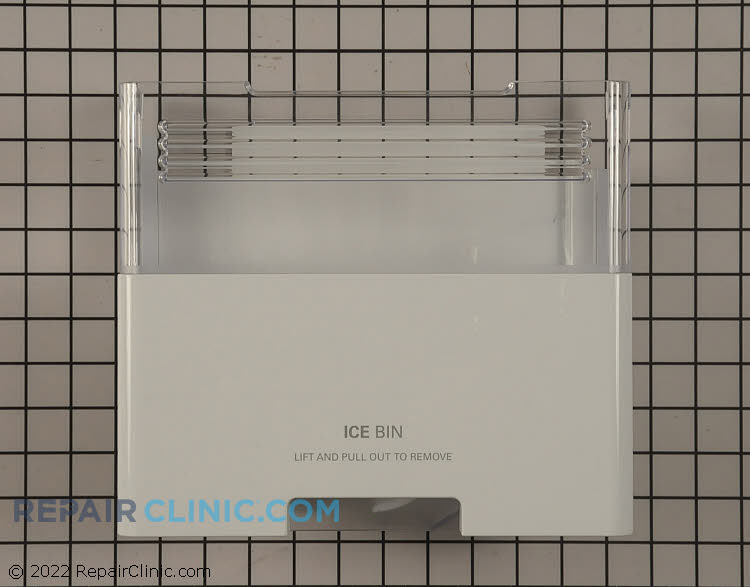

LINK> Bucket assembly,ice

Don't know if this is too old for yours...but it was something that I found...

jeff.



[DingoBongo]

Thank you. I love you.



[jeff1]

Please don't tell my wife

jeff.
